✅ ประกันศูนย์ 2ปี
✅ สามารถออกใบกำกับภาษีได้
✅ Dimension: 464mm (L) x 204mm (W) x 455mm (H)
✅ Power Supply: No Power
✅ Mainboard Support: ATX / Micro ATX / Mini ITX
✅ Size Mid Tower
✅ STEADFAST

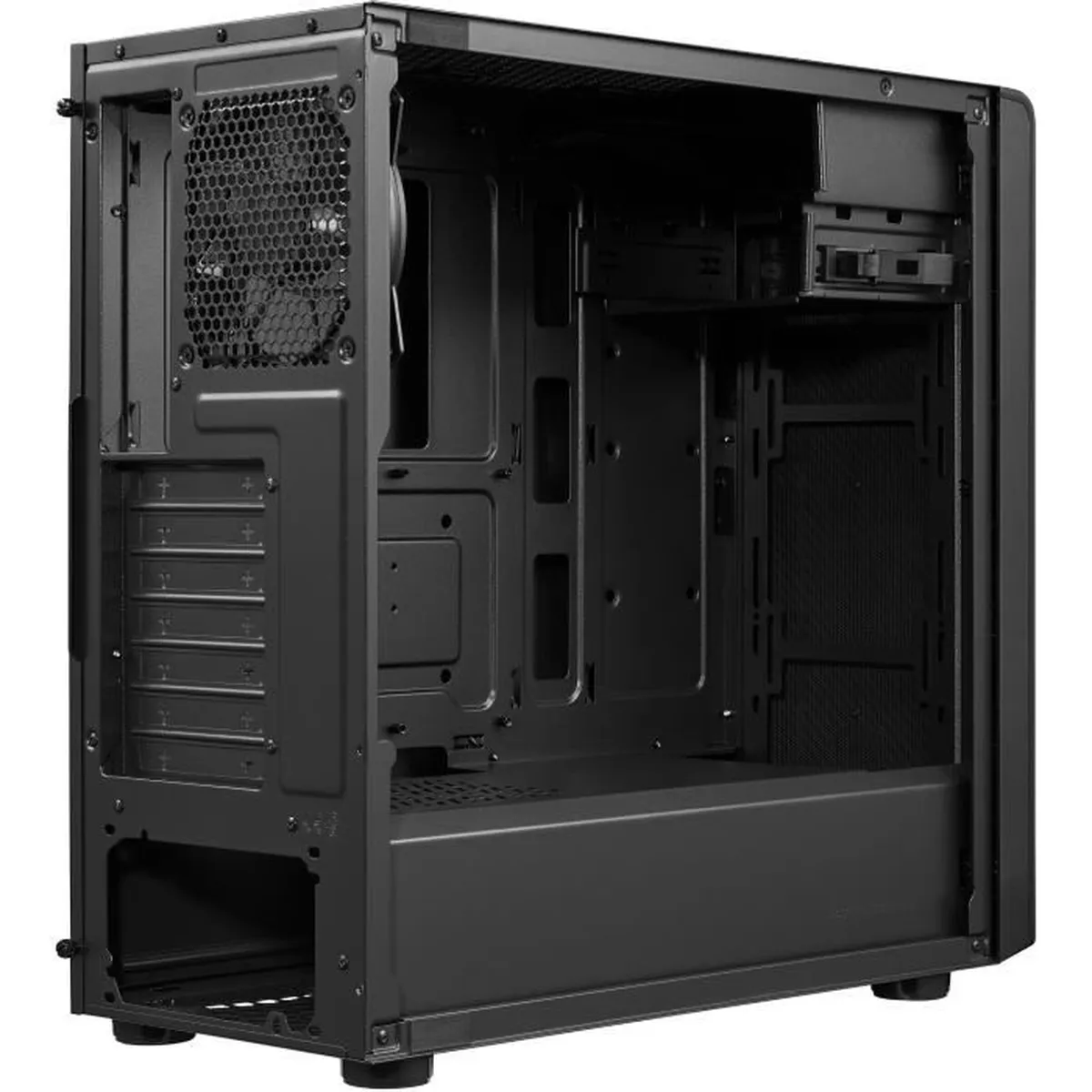

The Elite 500 is the essential solution for optimized cooling. Substantial ventilation on the front panel allows fresh air into the system for both air-cooled and liquid cooled configurations.
For simple tasks, the Elite 500 is a cost-effective solution to professional computing. For higher-demand tasks, the Elite 500 boasts a high compatibility for upgrades, able to house liquid cooling and provides clearance for the longest, widest graphics cards.
✅ LARGE FILTERED INTAKES
The front panel is constructed with a substantially large, unrestricted intake grill to provide superb airflow to the system.
✅ WITH/WITHOUT ODD SUPPORT
Depending on preference, an ODD version of the chassis is available. If an ODD is not preferred, a cleaner appearance and more cooling options on the top and front panels are supported. The ODD version of the Elite 500 is slightly deeper in comparison to its non-ODD counterpart.
✅ VERSATILE COOLING OPTIONS
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
✅ FULL BLACK COATING & PSU COVER
Let your system stand out with an all-black background and a PSU cover to hide cables.
✅ ROOM FOR UPGRADES
Support for up to a 350mm graphics card (400mm in the ODD version), a 161mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
✨✨✨ Specifications✨✨✨
✅ Series: Elite Series
✅ Size Mid: Tower
✅ Model Number: E500-KGNN-S00 (TG), E500-KNNN-S00 (Steel), E500-KG5N-S00 (TG, ODD), E500-KN5N-S00 (Steel, ODD)
✅ Color(s): Black
✅ Materials: Steel, Plastic, Tempered Glass
✅ Dimensions (L x W x H): 409 x 204 x 455mm (incl. Protrusions), 402 x 204 x 455mm (excl. Protrusions), 464 x 204 x 455mm (incl Protrusions, ODD), 457 x 204 x 455mm (excl. Protrusions, ODD)
✅ Volume: 37.29L (E500-KGNN-S00, E500-KNNN-S00) (exlc. Protrusions), 42.40L (E500-KG5N-S00, E500-KN5N-S00) (exlc. Protrusions)
✅ Motherboard Support: Mini ITX, Micro ATX, ATX
✅ Expansion Slots: 7
✅ Kensington Lock: N/A
✅ 5.25″ Drive Bays: 0 (E500-KGNN-S00, E500-KNNN-S00), 1 (E500-KG5N-S00, E500-KN5N-S00)
✅ 2.5″ / 3.5″ Drive Bays (Combo): 2
✅ 2.5″ Drive Bays: 3 (E500-KGNN-S00, E500-KNNN-S00), 5 (E500-KG5N-S00, E500-KN5N-S00)
✅ I/O Panel: 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
✅ Pre-installed Fans – Rear: 1x 120mm
✅ Fan Support – Top: 2x 120mm, 2x 140mm
✅ Fan Support – Front: 2x 140mm, 3x 120mm (E500-KGNN-S00, E500-KNNN-S00), 2x 120mm (E500-KGNN-S00, E500-KNNN-S00), 3x 120mm (remove ODD bracket) (E500-KGNN-S00, E500-KNNN-S00)
✅ Fan Support – Rear: 1x 120mm
✅ Radiator Support – Top: 120 / 240mm (32mm max motherboard component height)
✅ Radiator Support – Front: 120mm, 140mm, 240mm, 280mm, 360mm (Remove ODD) (E500-KG5N-S00, E500-KN5N-S00)
✅ Radiator Support – Rear: 120mm
✅ Clearance – CPU Cooler: TG: 161mm, Steel: 163mm
✅ Clearance – PSU: 160mm (E500-KGNN-S00, E500-KNNN-S00), 180mm (E500-KG5N-S00, E500-KN5N-S00)
✅ Clearance – GFX: 350mm (w/o front fans & radiator) (E500-KGNN-S00, E500-KNNN-S00), 400mm (w/o front fans & radiator) (E500-KG5N-S00, E500-KN5N-S00)
✅ Cable Routing: 18.5mm
✅ Dust Filters: Front, Top, Bottom
✅ Power Supply Support: Bottom Mount, ATX
✨✨✨ เงื่อนไขการรับประกัน ✨✨✨
1.หากสินค้ามีปัญหาภายใน 7 วัน: นับจาก “วันที่ได้รับสินค้า” สามารถเปลี่ยนใหม่หรือขอคืนเงินได้ ตามเงื่อนไข
– เกิดจากความผิดปกติของตัวสินค้าเอง เช่น แบตเตอรี่มีปัญหาชาร์จไฟไม่เข้า เปิดไม่ติด, กล้อง Webcam ภาพเป็นเส้นหรือเลนส์มีความผิดปกติ หูฟังหรือลำโพงเสียงไม่ออก เป็นต้น
– สินค้าต้องไม่ แตกหัก เปียกน้ำ หรือมีอาการเสียหายจากภายนอก
– ไม่รวมถึงปัญหาที่เกิดจากตัว Application หรือ Software ที่ใช้งานกับเครื่อง
2.กรณีเปลี่ยนใจ: คืนสินค้าได้ภายใน 7 วันโดยสินค้าต้องอยู่ในสภาพสมบูรณ์ ไม่ผ่านการแกะใช้งาน และลูกค้าเป็นผู้รับผิดชอบค่าใช้จ่ายที่เกิดขึ้นจากการคืนสินค้า
3.กรณีได้รับสินค้าผิด: สินค้าจะต้องไม่ถูกแกะกล่องใช้งาน และต้องอยู่ในสภาพสมบูรณ์
4.กรณีสินค้าไม่ตรงตามที่โฆษณาไว้: สินค้าไม่สามารถใช้งานได้ตามที่บรรยายไว้ สินค้าจะต้องไม่ถูกแกะกล่องใช้งาน และต้องอยู่ในสภาพสมบูรณ์ ทั้งนี้ทางบริษัท ขอสงวนสิทธิ์ในการรับผิดชอบใดๆ อันเนื่องจากข้อผิดพลาดจากการพิมพ์ผิดหรือพิมพ์ตก
5.กรณีที่สินค้าอาจชำรุด/เสียหาย: ผู้ซื้อต้องทำการส่งสินค้ากลับมาให้ทางบริษัทตรวจสอบ โดยกล่องและอุปกรณ์ทั้งหมดจะต้องอยู่ครบ
– หากตรวจสอบแล้วพบว่า สินค้ามีปัญหาจริง บริษัทจะเปลี่ยนหรือคืนเงินให้
– หากตรวจสอบแล้วพบว่า สินค้าไม่ได้มีปัญหาจริง บริษัทจะทำการส่งสินค้ากลับคืนให้กับผู้ซื้อ
***โปรดถ่ายวิดีโอตอนแกะกล่องพัสดุและเช็คสินค้าทุกครั้ง หากไม่มีวิดีโอมายืนยันกรณีสินค้าเสียหายหรือสินค้าไม่ครบทางบริษัทของสงวนสิทธิ์ไม่รับผิดชอบใดๆ ทั้งสิ้น***
