TP-Link VIGI SP9030 Intelligent Solar Power Supply System ระบบจ่ายไฟโซล่าเซลล์อัจฉริยะ ของแท้ ประกันศูนย์ 3 ปี

✅ มีการรับประกันศูนย์ 3 ปี

✅ สามารถออกใบกำกับภาษีได้

✅ 90W Photovoltaic Panel and 30Ah/10.8V Lithium Battery

✅ Modular Design

✅ 5°/15°/25°/35°/45°/55° Adjustable Angles

✅ Intelligent Auxiliary Heating Technology

✅ Maximum Power Point Tracking (MPPT) Charging Controller

✅ IP66 Weatherproof

✅ Remote Management

✅ Simple Installation

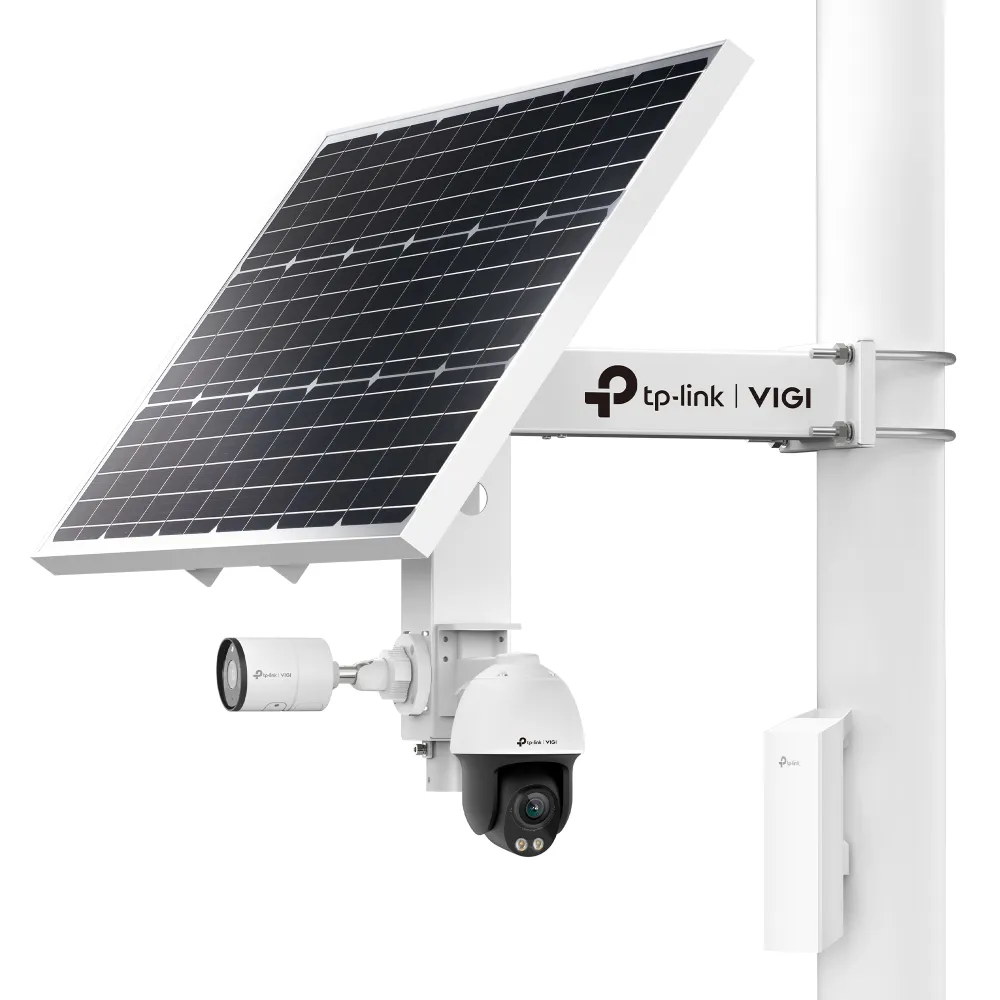

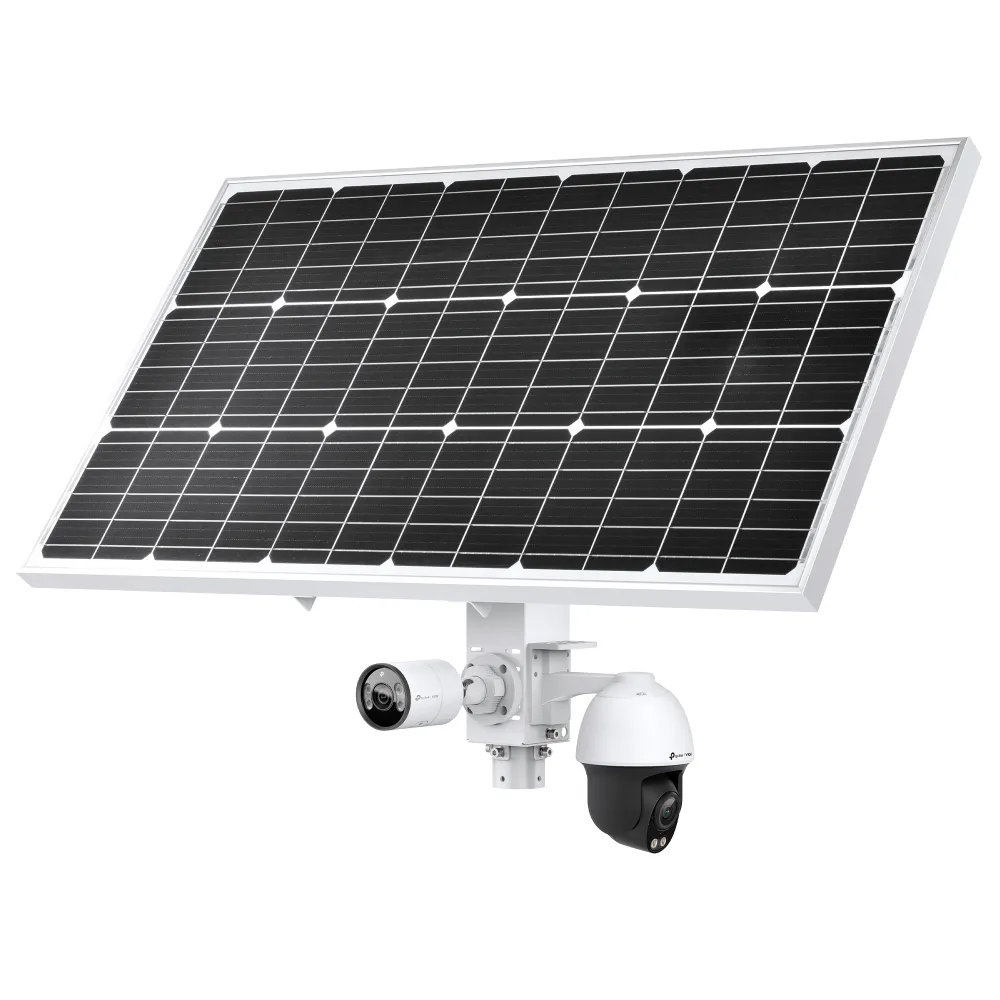

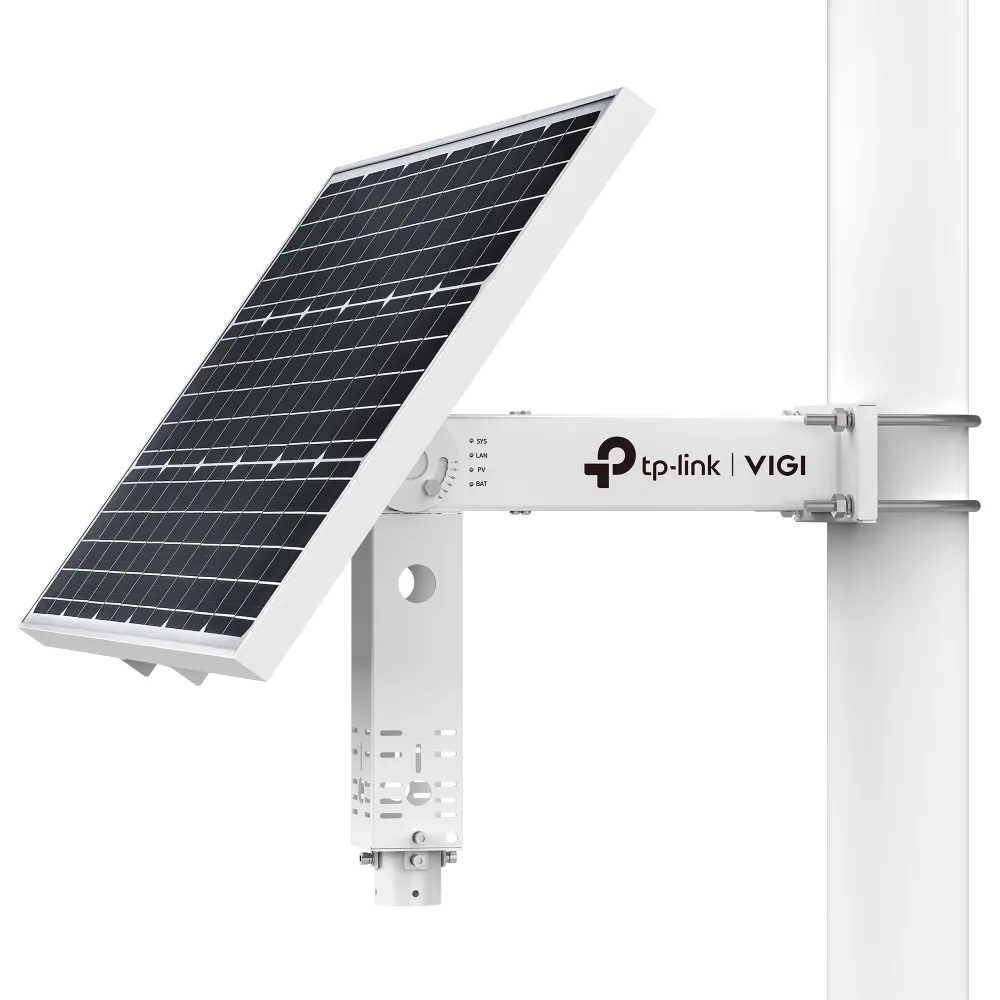

✨✨TP-Link VIGI SP9030 Intelligent Solar Power Supply System✨✨

⭐Non-Stop Power Where the Sun Shines⭐

🌟Intelligent Auxiliary Heating Technology

The built-in smart battery supports intelligent auxiliary heating technology, which allows the battery to operate normally across a wide temperature range.

🌟MPPT Controller Boosts Charging Efficiency

An MPPT (Maximum Power Point Tracking) controller optimizes solar panel power, reduce power losses, and increase charging efficiency by 20% compared to PWM (Pulse Width Modulation) controllers.

🤩🤩Specifications🤩🤩

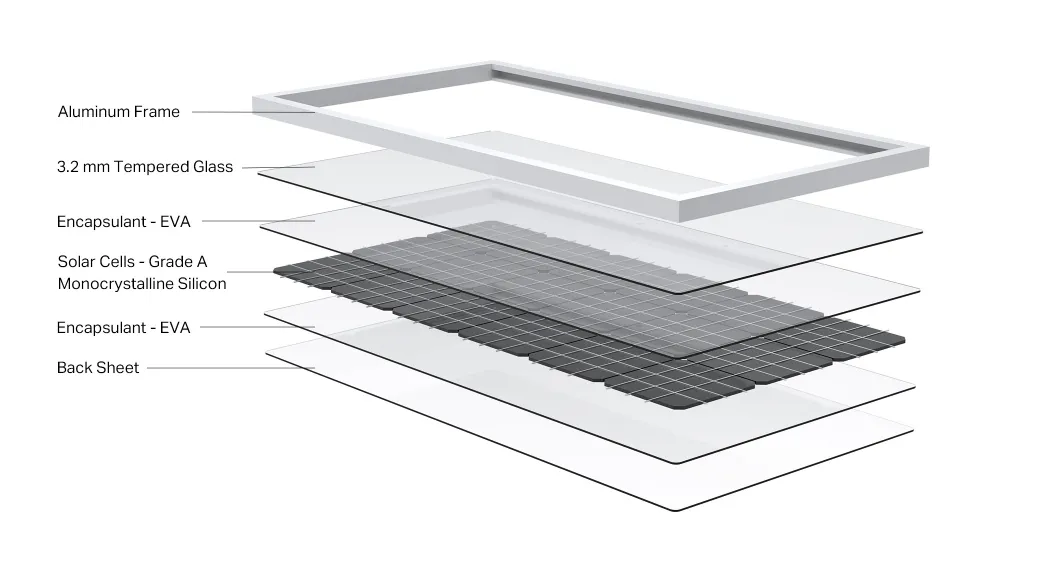

🌺Solar Panel (Photovoltaic Panel)

🚩Power 90 W

🚩Voltage 18 V

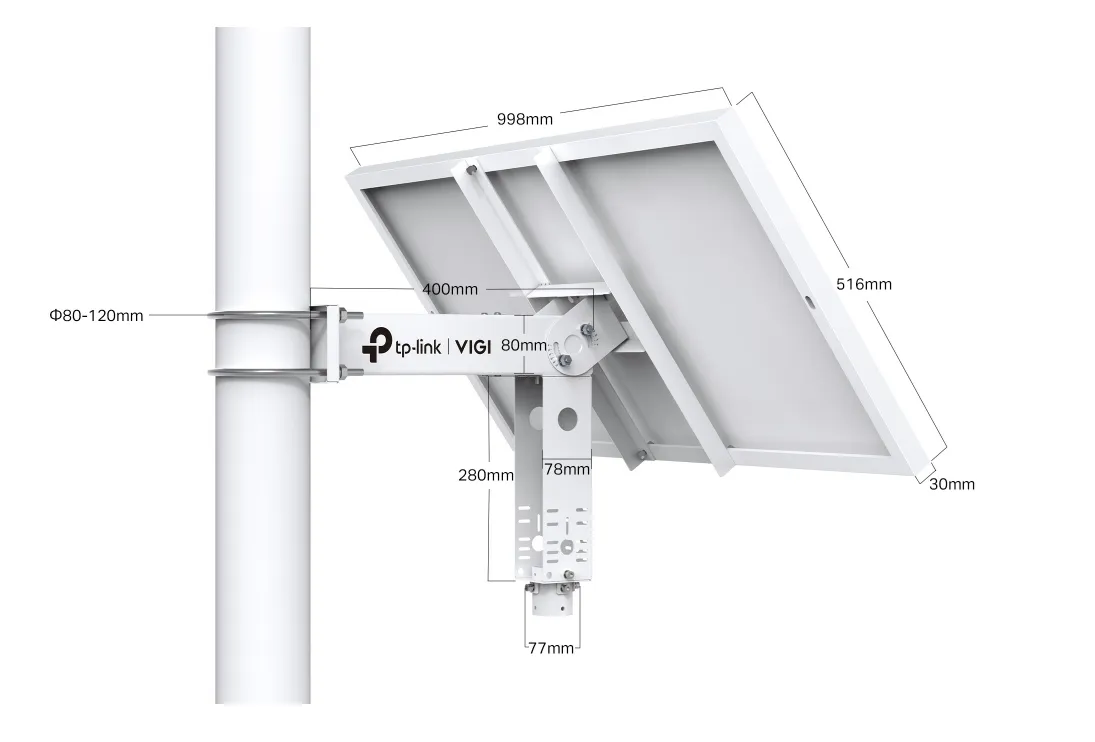

🚩Dimensions (L x W x H) 998×516×30 mm (39.3×20.3×1.2 in)

🌺Battery

🚩Type Lithium

🚩Intelligent Auxiliary Heat Yes

🚩Battery Capacity 31.2 Ah

🚩Voltage 10.8 V

🚩Max. Output Voltage 12.6 V

🚩Life More than 500 cycles

🚩Dimension 250×74×74 mm (9.8×2.9×2.9 in)

🚩Charging Condition

• 0°C~45°C

• -30°C~45°C (With intelligent auxiliary heating)

🚩Discharging Condition

• -20°C~60°C

• -30°C~60°C (With intelligent auxiliary heating)

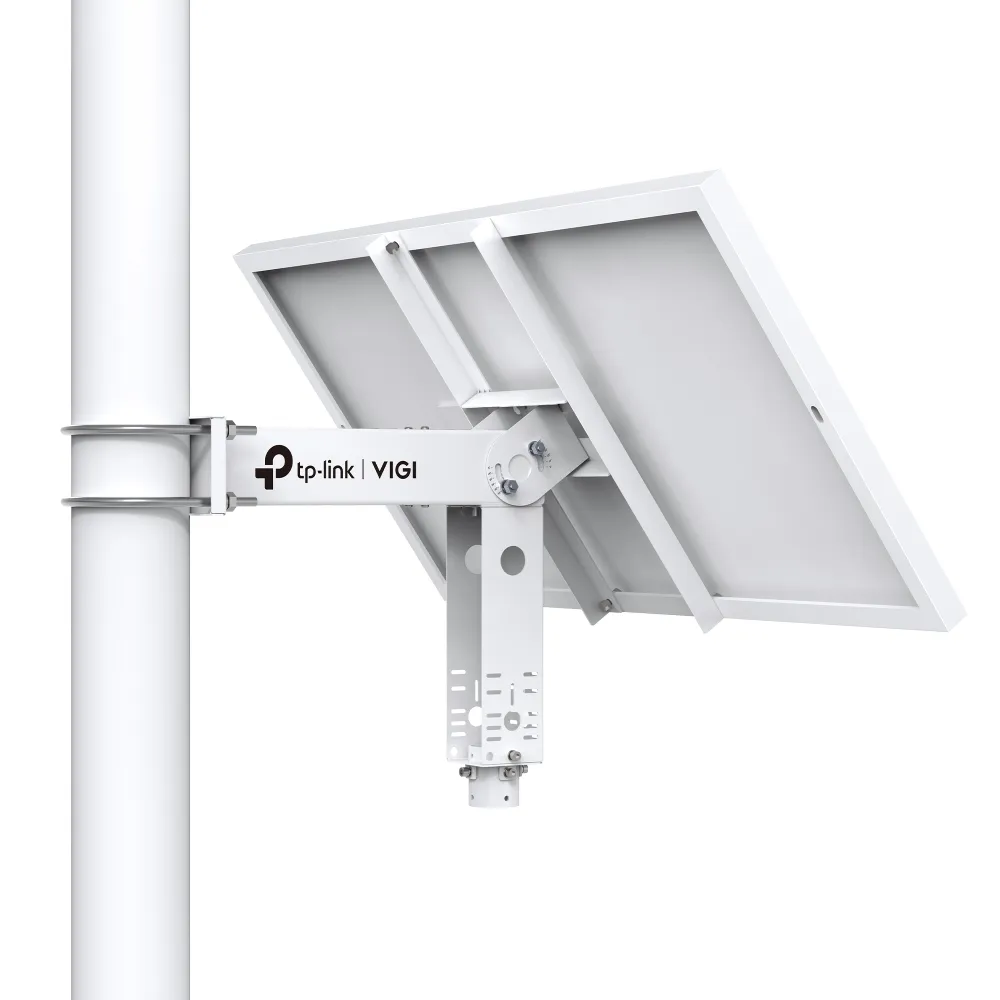

🌺Angle Adjustment (Manual)

Range 5°/15°/25°/35°/45°/55°

🌺HARDWARE

🚩Interface

• 1× 10/100 Mbps RJ45

• 1× Photovoltaic Panel Connector

• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)

🚩Indicator LED

• Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)

• Color: Blue

🌺OTHERS

🚩Certification

• CB, PSE (Battery)

• CE, FCC, VCCI, IC, IP66

🚩Package Contents

• VIGI SP9030

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories

🚩Box Dimensions (W X D X H) 1110×615×225 mm (43.7×24.2×8.9 in)

🚩Weight

• Product Weight: 15 kg

• Package Weight: 17.5 kg

🚩Environment

• Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)

• Operating Humidity: 10%~90%RH, Non-condensing
