❇️❇️❇️ Specifications ❇️❇️❇️
🔻 Mechanical 🔻
💠 Dimensions – Ø206 x 46 mm (Ø8.1 x 1.8″)
💠 Weight – 680 g (1.5 lb)
💠 Enclosure material – Polycarbonate, metal
💠 Mount material – Stainless steel (SUS304), galvanized steel (SGCC)
🔻 Hardware 🔻
💠 Networking interface – (1) 1/2.5 GbE RJ45 port
💠 Management interface – Ethernet
💠 Power method – PoE+
💠 Power supply – UniFi PoE switch
💠 Supported voltage range – 44—57V DC
💠 Max. power consumption – 21W
💠 Max. TX power
🔹 2.4 GHz – 22 dBm
🔹 5 GHz – 26 dBm
🔹 6 GHz – 23 dBm
💠 MIMO
🔹 2.4 GHz – 2 x 2 (DL/UL MU-MIMO)
🔹 5 GHz – 2 x 2 (DL/UL MU-MIMO)
🔹 6 GHz – 2 x 2 (DL/UL MU-MIMO)
💠 Max. data rate
🔹 2.4 GHz – 688 Mbps (BW40)
🔹 5 GHz – 4.3 Gbps (BW240)
🔹 6 GHz – 5.7 Gbps (BW320)
💠 Antenna gain
🔹 2.4 GHz – 4 dBi
🔹 5 GHz – 6 dBi
🔹 6 GHz – 5.8 dBi
💠 LEDs – White/blue
💠 Button – Factory reset

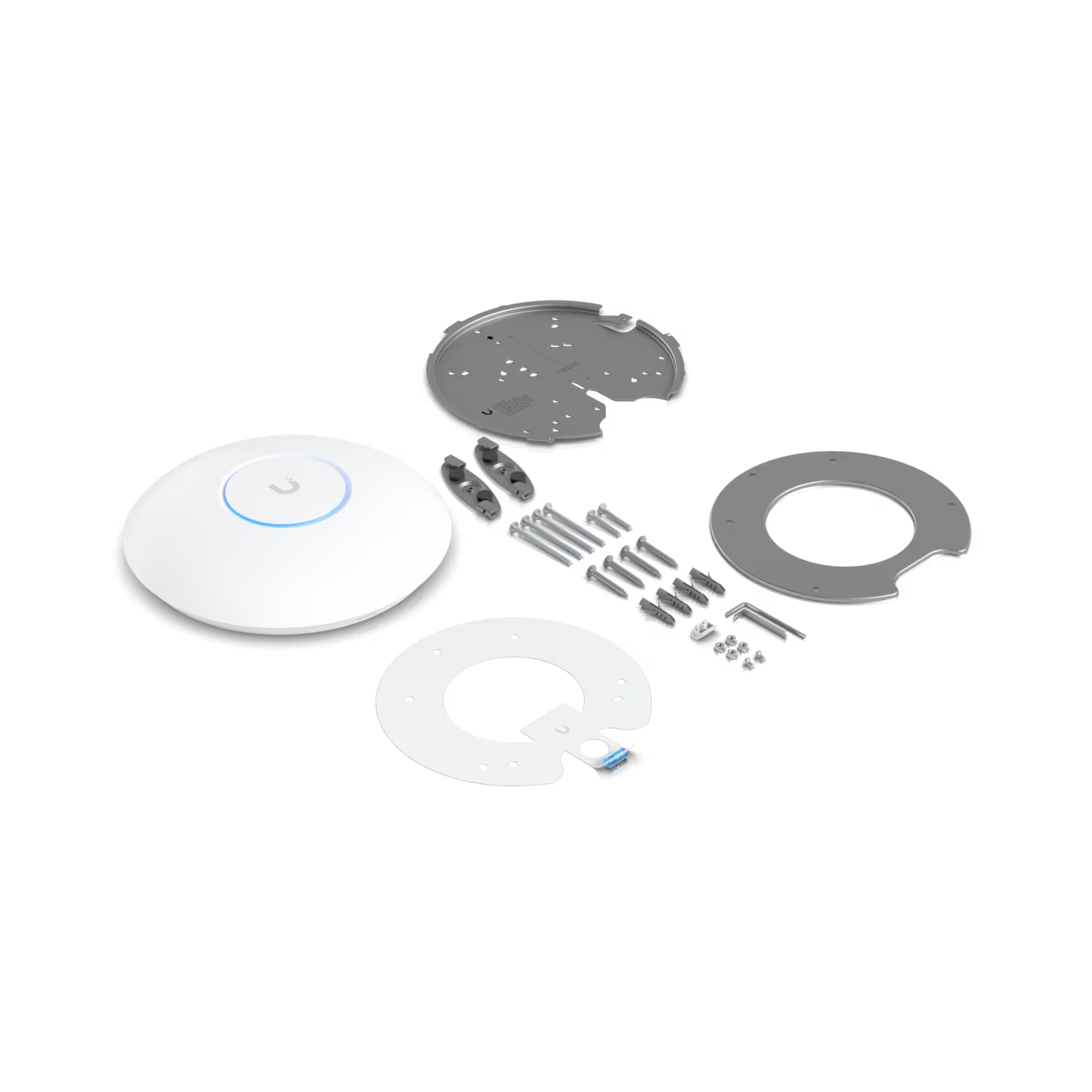

💠 Mounting – Wall/ceiling (Included)
💠 Ambient operating temperature – -30 to 60° C (-22 to 140° F)
💠 Ambient operating humidity – 5 to 95% noncondensing
💠 Certifications – CE, FCC, IC
🔻 Software 🔻
💠 WiFi standards – 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
💠 Wireless security – WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
💠 BSSID – 8 per radio
💠 VLAN – 802.1Q
💠 Advanced QoS – Per-user rate limiting
💠 Guest traffic isolation – Supported
💠 Concurrent clients – 300+
🔻 Supported Data Rates 🔻
💠 802.11a – 6, 9, 12, 18, 24, 36, 48, 54 Mbps
💠 802.11b – 1, 2, 5.5, 11 Mbps
💠 802.11g – 6, 9, 12, 18, 24, 36, 48, 54 Mbps
💠 802.11n – 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
💠 802.11ac – 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
💠 802.11ax (WiFi 6/6E) – 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
💠 802.11be (WiFi 7) – 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
