✅ รับประกันศูนย์ 3ปี
✅ สามารถออกใบกำกับภาษี
✅ Intel i3
✅ 8GB DDR4, 128GB SATA SSD
✅ Windows 11 IoT Enterprise SA
✅ Microsoft Teams Rooms Certifications
✅ Touch Control Panel 10.1 inch FHD Capacitive touch

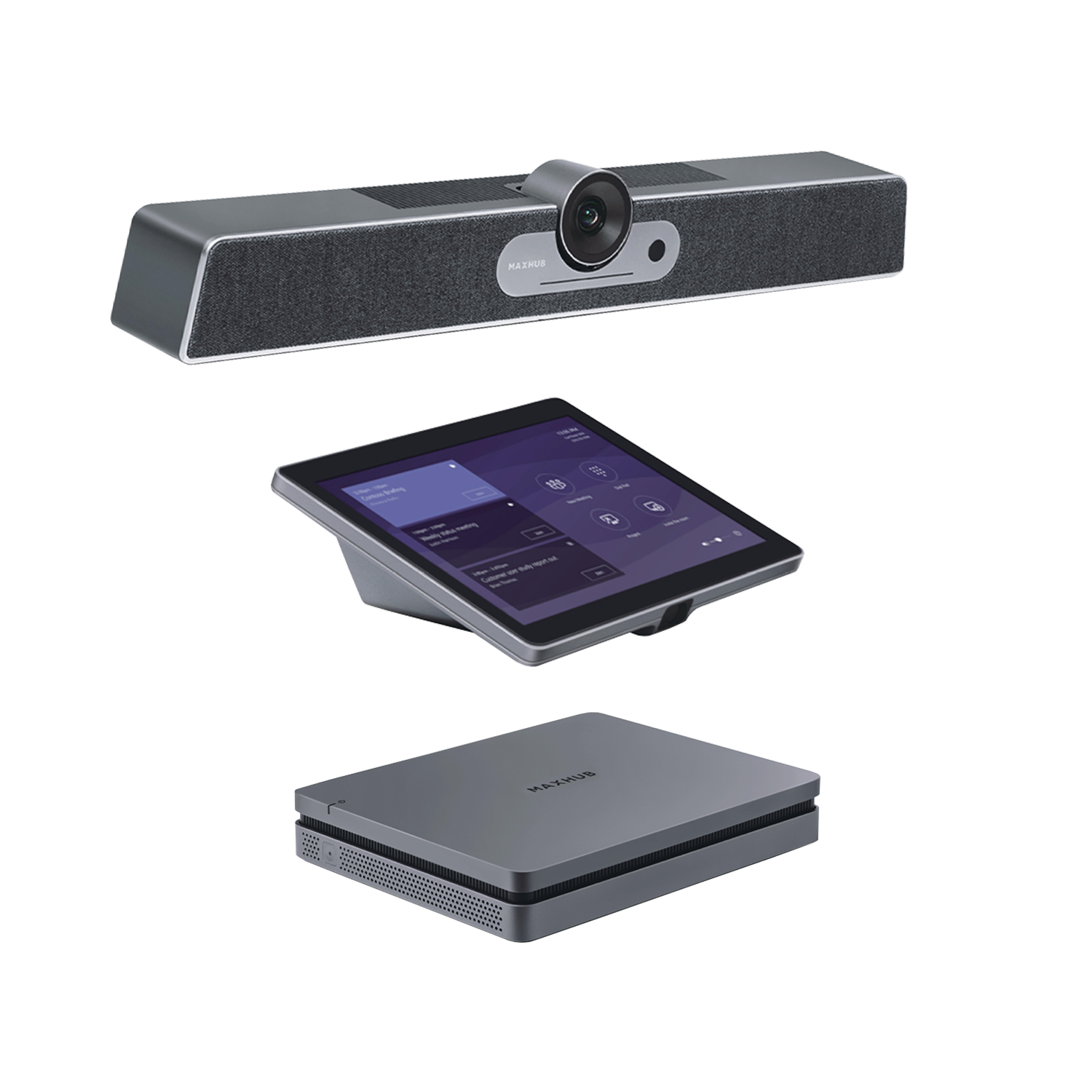

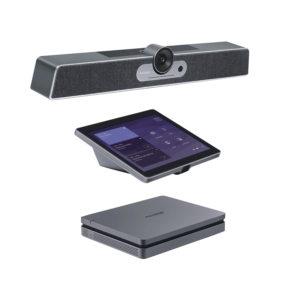

✨✨✨ MAXHUB XCore Room Kit for Microsoft Teams Rooms ✨✨✨
📍 Model: XT10-VB Kit 📍
MAXHUB XT10-VB Kit showcases its versatility with the addition of an exceptional Videobar. Designed with simplified
front-line one-cable deployment and remarkable expandability, this bundle effortlessly accommodates the evolving needs
of multiple devices. Compatible with Microsoft Teams Rooms, the Kit also helps to facilitate the switch to Microsoft Teams
Rooms smart spaces for BYOD scenarios, enhancing Teams-native audio and video experiences while accommodating
cost-balance needs.

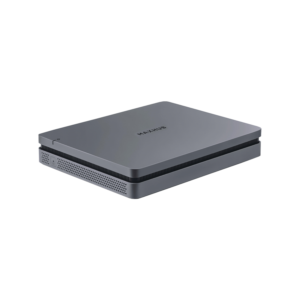

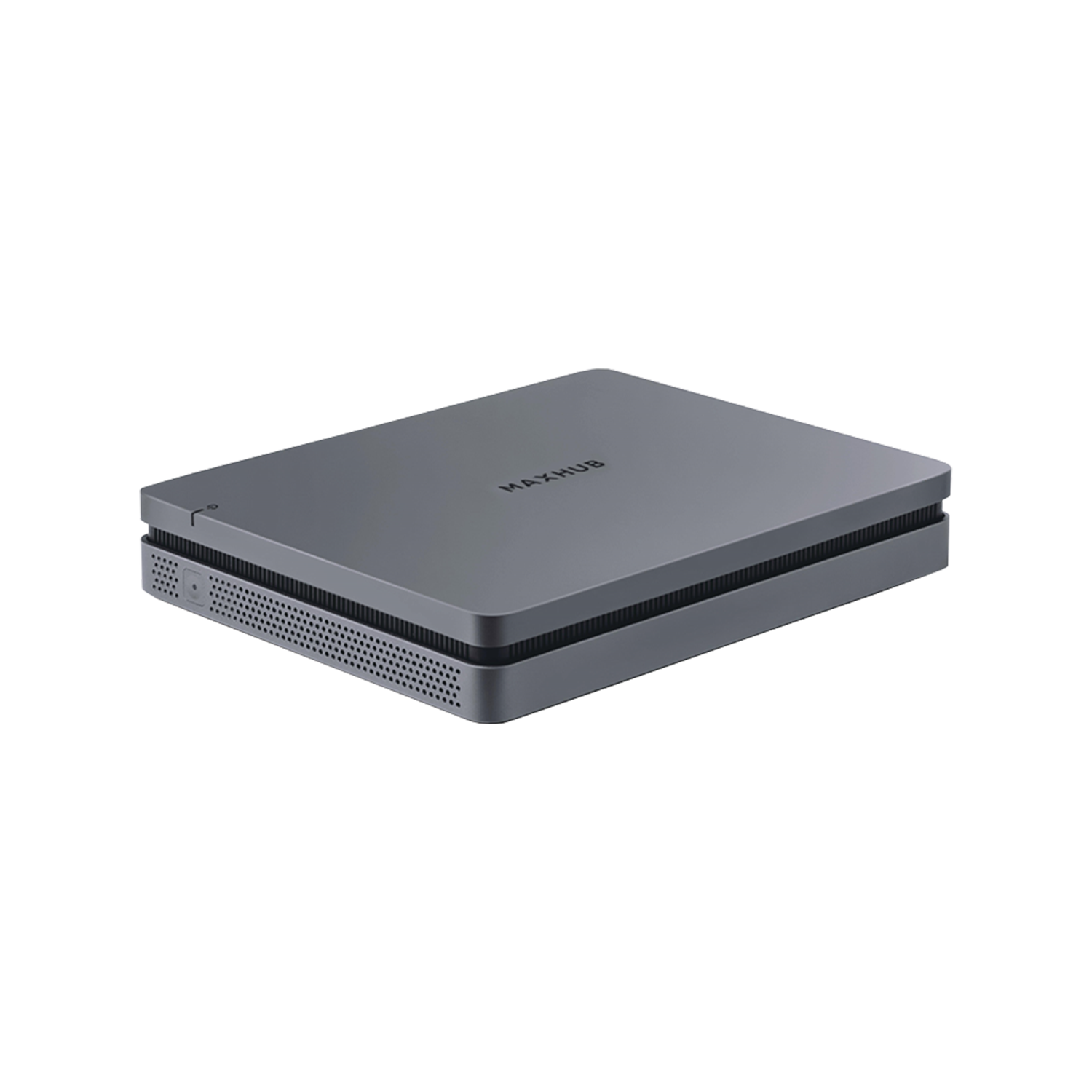

✨✨✨ XC13T Mini-PC ✨✨✨
🔻 Specifications 🔻
📌 Type – Mini-PC
📌 CPU – Intel i3-1220P TDP: 28W
📌 Memory – 8GB DDR4 3200MHz
📌 Optional hard disk – 128GB SATA SSD (M.2-2280 SATA3 up to 6Gb/s)
📌 Graphics – Intel® UHD Graphics for 12th Gen Intel® Processors;
📌 Chipset – ADL PCH-P
📌 Sound Card – USB Audio, HS-100B, Cmedia
📌 Network – 1000Mbps RJ45
📌 Operating system – Windows 11 loT Enterprise SAC
🔻 I/O Port 🔻
📌 USB-A 3.0 – 4
📌 LAN – 1
📌 USB-C (For Teams Rooms Console) – 1
📌 HDMI OUT – 1
📌 Audio OUT – 1
📌 AC POWER – 1
📌 Kensington lock slot – 1

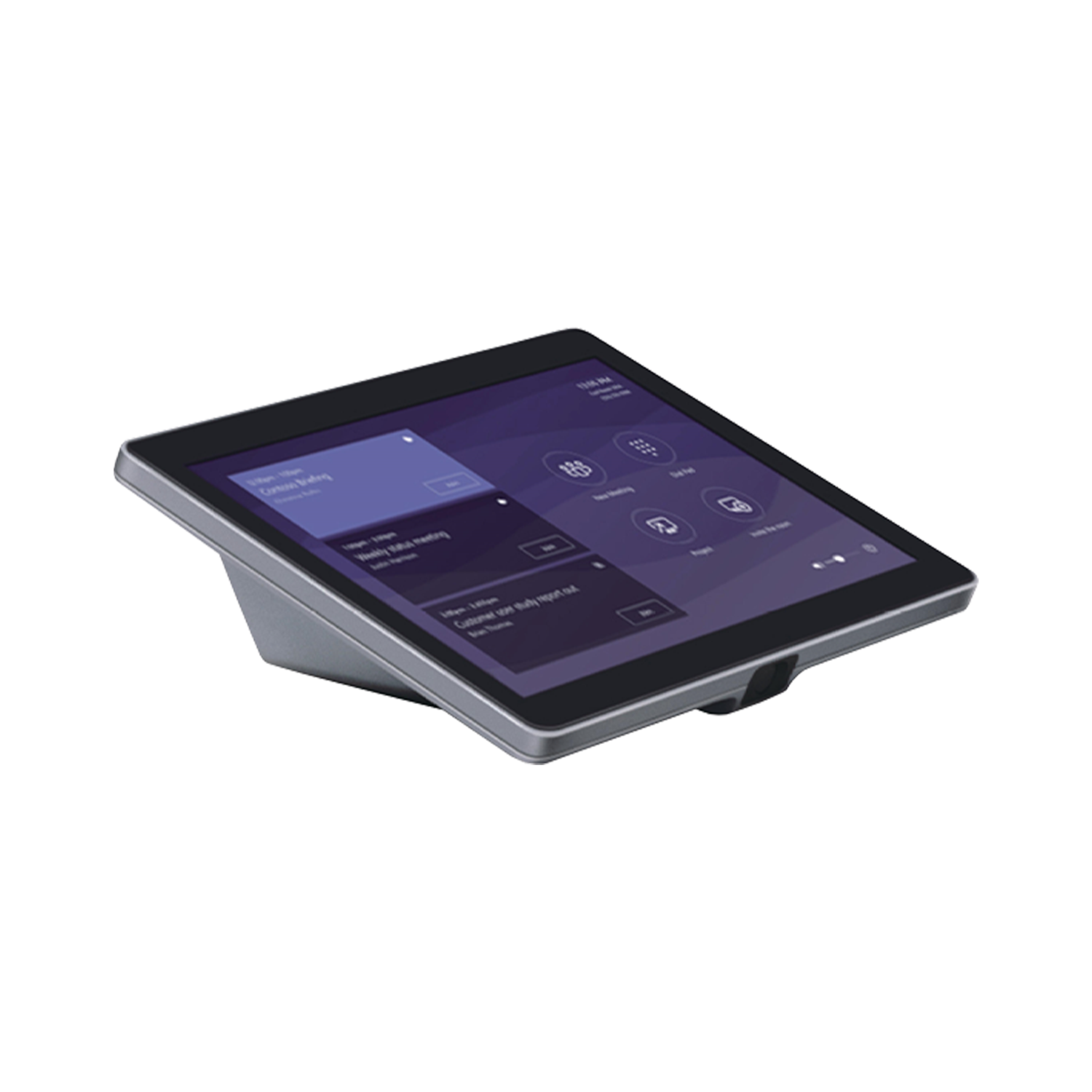

✨✨✨ TCP20T Touch Control Panel ✨✨✨
🔻 Display 🔻
📌 Size – 10.1 inch
📌 Resolution – 1920 (H) x 1200 (V)
📌 Frequency Refresh Rate – 60Hz
📌 NTSC – Min.62%, Typ.65%
📌 Back Light Unit – ELED
📌 Brightness with glass – Min.250cd/m², Typ.300cd/m²
📌 Life Time – > 20000 Hours
🔻 Touch System 🔻
📌 Type – Capacitive touch
📌 Touch Tool – Finger
📌 Accuracy – ±2mm/0.08″
📌 Touch Point – 10 points touch
📌 Minimum object size – 6mm/0.24″
🔻 I/O Port 🔻
📌 HDMI INGEST (SCREEN SHARE) – 1
📌 USB-A (USB PERIPHERAL) – 1
📌 USB-C (TO PC) – 1
📌 3.5mm (AUDIO OUT) – 1

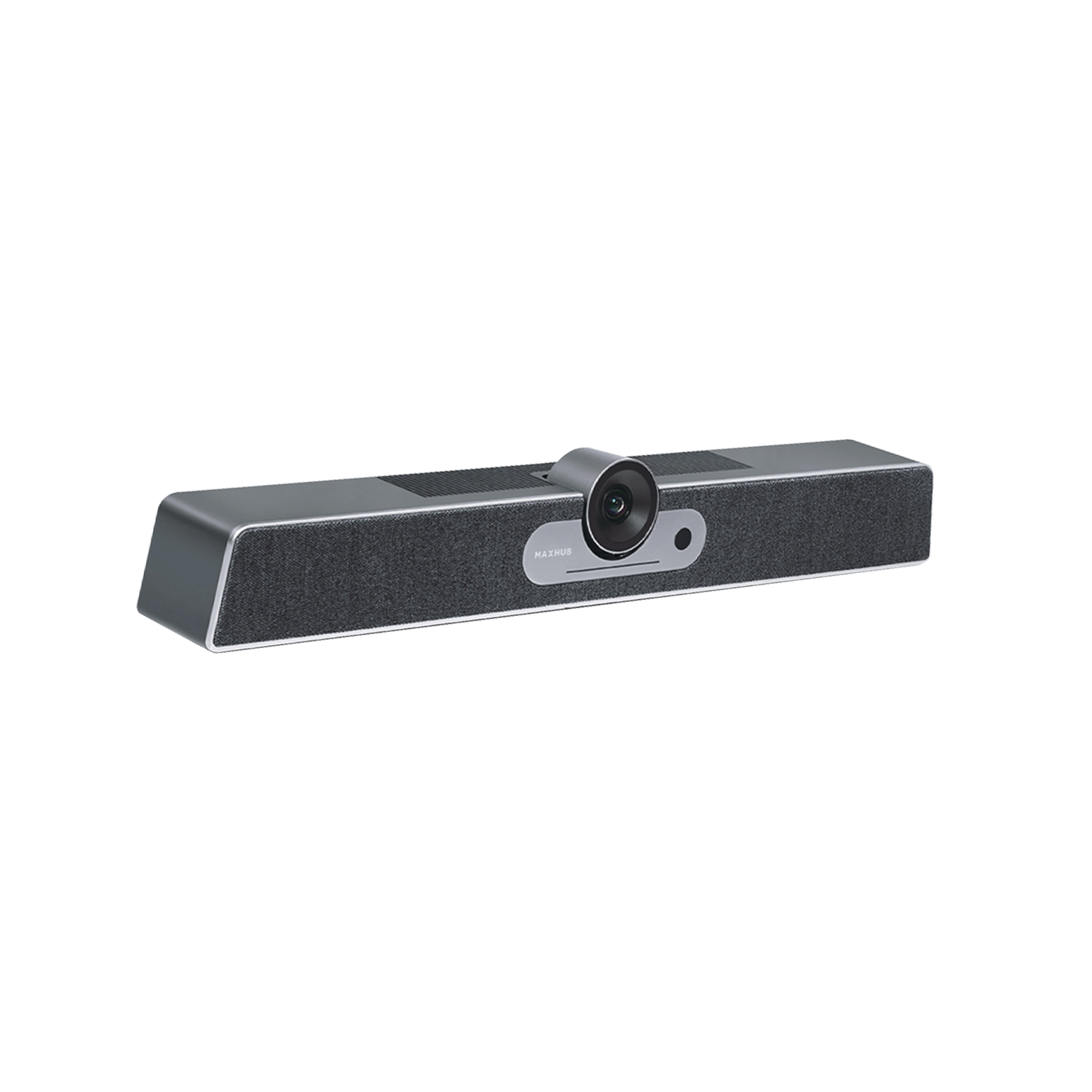

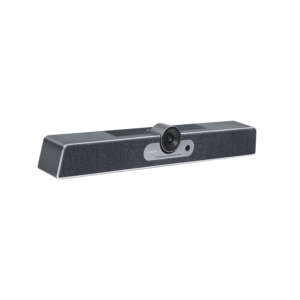

✨✨✨ UC S07 VideoBar ✨✨✨
🔻 Camera 🔻
📌 Pixel – 12MP
📌 Sensor – 1/2.3-inch 12MP Sony sensor
📌 ZOOM – 5x Digital Zoom
📌 Output Format – MJPG; YUY2; H.264
📌 Field Of View – 120° (D)
📌 Adjustable Angle – ± 15° (V)
📌 Focus Mode – Fixed-Focus
📌 Focus Distance – 1m/39.4″
📌 Special Features – Auto Framing: automatic adjustment FOV to fit in all participants Speaker Tracking: voice triggered people tracking 10 Zooming Pre-sets for instant setting up
🔻 Audio 🔻
📌 Speaker
🔹 Sound Chanel – 1.1
🔹 Output Power – 8W + 3W
🔹 Signal to Noise Ratio – >75dB
🔹 Microphone Quantity – 6
🔹 Voice Pickup Range – 8m/314.96″
📌 Special Features
🔹 Noise Reduction,
🔹 Echo Cancellation,
🔹 Anti-Reverberation,
🔹 uilt-in AGC Algorithm
🌟🌟🌟 re Kit Package Includes 🌟🌟🌟
🔹 XC13T Mini-PC x1
🔹 TCP20T Touch Control Panel x1
🔹 UC S07 x1
🌟🌟🌟 ackage Physical Specifications 🌟🌟🌟
🔹 mension (package) L×W×H – 705x440x265mm / 27.76″x17.32″x10.43″
🔹 Net Weight – 9.068kg/19.99lbs
🔹 Gross Weight – 11.49kg/25.33lbs
🔻🔻🔻 ***เงื่อนไขการรับประกัน*** 🔻🔻🔻
1.หากสินค้ามีปัญหาภายใน 7 วัน: นับจาก “วันที่ได้รับสินค้า” สามารถเปลี่ยนใหม่หรือขอคืนเงินได้ ตามเงื่อนไข
– เกิดจากความผิดปกติของตัวสินค้าเอง เช่น แบตเตอรี่มีปัญหาชาร์จไฟไม่เข้า เปิดไม่ติด, กล้อง Webcam ภาพเป็นเส้นหรือเลนส์มีความผิดปกติ หูฟังหรือลำโพงเสียงไม่ออก เป็นต้น
– สินค้าต้องไม่ แตกหัก เปียกน้ำ หรือมีอาการเสียหายจากภายนอก
– ไม่รวมถึงปัญหาที่เกิดจากตัว Application หรือ Software ที่ใช้งานกับเครื่อง
2.กรณีเปลี่ยนใจ: คืนสินค้าได้ภายใน 7 วันโดยสินค้าต้องอยู่ในสภาพสมบูรณ์ ไม่ผ่านการแกะใช้งาน และลูกค้าเป็นผู้รับผิดชอบค่าใช้จ่ายที่เกิดขึ้นจากการคืนสินค้า
3.กรณีได้รับสินค้าผิด: สินค้าจะต้องไม่ถูกแกะกล่องใช้งาน และต้องอยู่ในสภาพสมบูรณ์
4.กรณีสินค้าไม่ตรงตามที่โฆษณาไว้: สินค้าไม่สามารถใช้งานได้ตามที่บรรยายไว้ สินค้าจะต้องไม่ถูกแกะกล่องใช้งาน และต้องอยู่ในสภาพสมบูรณ์ ทั้งนี้ทางบริษัท ขอสงวนสิทธิ์ในการรับผิดชอบใดๆ อันเนื่องจากข้อผิดพลาดจากการพิมพ์ผิดหรือพิมพ์ตก
5.กรณีที่สินค้าอาจชำรุด/เสียหาย: ผู้ซื้อต้องทำการส่งสินค้ากลับมาให้ทางบริษัทตรวจสอบ โดยกล่องและอุปกรณ์ทั้งหมดจะต้องอยู่ครบ
– หากตรวจสอบแล้วพบว่า สินค้ามีปัญหาจริง บริษัทจะเปลี่ยนหรือคืนเงินให้
– หากตรวจสอบแล้วพบว่า สินค้าไม่ได้มีปัญหาจริง บริษัทจะทำการส่งสินค้ากลับคืนให้กับผู้ซื้อ
***โปรดถ่ายวิดีโอตอนแกะกล่องพัสดุและเช็คสินค้าทุกครั้ง หากไม่มีวิดีโอมายืนยันกรณีสินค้าเสียหายหรือสินค้าไม่ครบทางบริษัทของสงวนสิทธิ์ไม่รับผิดชอบใดๆ ทั้งสิ้น***
![]()
